Santiago Teotongo

Region: Mixteca Alta
Church construction date: 1680 (painting in the church 1742, bell 1778)
Organ construction date: ca. 1750
Organ builder: unknown
Last played: unknown
Organ classification: 8´ stationary organ
Tonal base: 8´ principal
Pitch: unknown
Case measurements:
height 4.34 m, width lower case 1.90 m, width lower case with hips 2.53 m, width upper case 2.18 m,
depth 1.02 m
Keyboard: missing, but it had 45 notes C-c' with a short octave, registers divided c'/c#'
Bellows: three original wedge bellows piled up in the ample space behind the organ
Similar organs: San Mateo Yucucuí, Tejupan (1776), Tlacolula (1792)

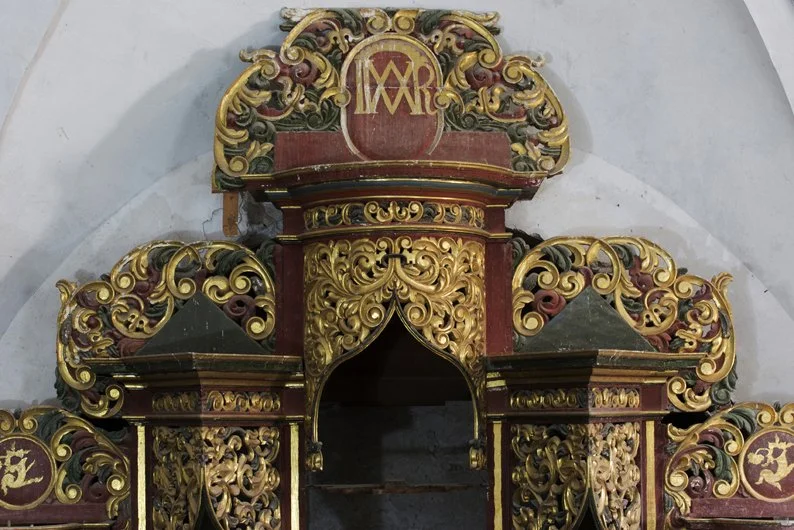

Upon entering the church of Santiago Teotongo, a museum of Oaxaca baroque art, the beautiful organ is immediately visible in its tribune high up on the right. Richly carved volutes painted and gilded in red, green, and gold tones adorn the upper case of the organ. The monogram of the Virgin Mary is encircled in the crest above the central tower. The lower case is austere and undecorated, since it was not visible from the church floor below. During the 20th century, the entire case was painted with red enamel, replicating the underpainting applied sometime after the original construction. The carvings were also retouched, which is why they look so dazzling. The organ has relatively few stops for its size. Two of the six are reed stops and the others are pitched high, including a 2´ three-rank mixture, so the organ must have had a brilliant sound. It seems to have been built and modified in stages with the reed stops and accessory bird stop added after the original construction. It resembles the unpainted but more complete organ in Yucucui dated 1743.

Five carved wooden statues, four trumpeter angels and the larger trumpeter archangel Saint Michael, once stood on the bases of the organ's towers. Pipes connected to the horizontal reed stop (clarín) ran through their bodies to trumpets (missing) held up in playing position and attached to their O-shaped mouths. Statues of saints or angels which adorned the organs in the Cathedral and the Basilica de la Soledad have been documented during this period. However, only those in Teotongo have been preserved, and it is unknown if any of the others could sing.

SPECIFICATIONS (proposed)

Left hand: 21 notes C-c’ with a short octave
1. Clarín (Bajoncillo) 4´*
2. Flautado mayor 8´
3. Octava 4´
4. Docena 2 2/3´
5. Quincena 2´
6. Trompeta real 8´*

*added later

Right hand: 24 notes c#’-c’’’
1. Clarín 8´*
2. Flautado mayor 8´
3. Octava 4´
4. Quincena 2´
5. Mixtura III 2´?
6. Quincena 2° 2´or Veintidocena 1´
Pajaritos*

*added later
