Santa María Zaachila

Region: Central Valleys
Church construction date: 17th /18th century
Organ construction date: 1850-1870
Organ builder: unknown
Last played: 1950s
Organ classification: 8´ stationary organ
Tonal base: 8´ principal (16´ pedal)
Pitch: a=440 Hz
Case measurements: height 4.10 m, width upper and lower case 1.70 m, width lower case with hips 2.40 m, depth 1.04 m
Keyboard: 56 notes C-g’’’, LH chromatic, registers divided c’/c#’
Bellows
: three wedge bellows located to the left of the organ
Similar organs: none after its reconstruction

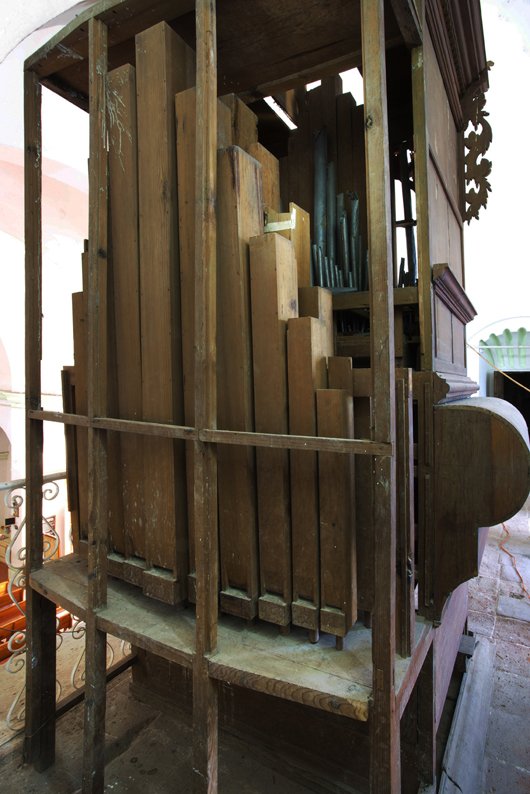

Originally a grand instrument with a traditional disposition, the organ of Santa María Zaachila was extensively modified between 1910 and 1925 to produce a more romantic sound. The trumpet stops were canceled; the row of wooden rings marks where the horizontal trumpets (clarín) had been positioned. A pedalboard was installed, which required an extension on the back of the organ for the 16´ rank of stopped wooden pipes and an additional wind chest to feed them. The pipes were cut to raise the pitch to 440 Hz. The porcelain stop knobs are unusual, and in fact, some of them are too close to those next to them to pull out at the same time.

SPECIFICATIONS

Left hand: 25 notes C-c’
1. Flautado mayor 8´
2. Octava 4´
3. "Dolce" Tapadillo 4´
4. Quincena 2´
5. Armonium 8´*
6. Bardón 16´ pedal**

*recycled harmonium reeds, Clarín canceled
**two octaves, Trompeta real canceled

Right hand: 31 notes c#’-g’’’
1. Flautado mayor 8´
2. Octava 4´
3. "Dolce" Tapadillo 4´
4. Quincena 2´
5. Armonium 8´*
6. Voz humana**

*recycled harmonium reeds, Clarín canceled
**continuation of 16´ pedal
