San Pablo Coatlán
Region: Sierra Sur Zapoteca
Church construction date: 18th century
Organ construction date: 1800-1840
Organ builder: unknown
Last played: unknown
Organ classification: 4´ stationary organ
Tonal base: 4´ principal
Pitch: unknown
Case measurements: (partial) width 2.13 m, depth 0.85 m
Keyboard: remnants remain; there were 45 notes C-c''' with a short octave, registers divided c'/c#'
Bellows: missing
Similar organs: unknown

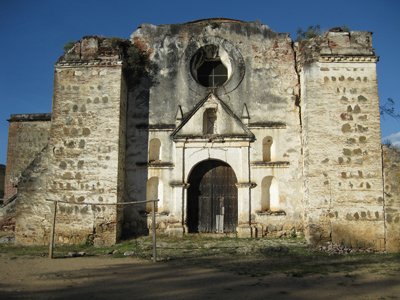

The remaining pieces of the San Pablo Coatlán organ indicate a typical 4´ stationary instrument. Perhaps it replaced a former organ, since it was located in a magnificent church full of baroque gilded altarpieces. Part of the roof collapsed during the 1999 earthquake and was left open for decades. The organ was abandoned prior to the earthquake and only the chest and representative fragments of its construction remain.
SPECIFICATIONS (proposed)
Left hand: 21 notes C-c’ with a short octave
1. Flautado mayor 4´ ´
2. Octava 2´
3. Tapadillo 2´
4. Docena 1 1/3´
5. Quincena 1´
Right hand: 24 notes c#'-c'''
1. Flautado mayor 4´ ´
2. Octava 2´
3. Tapadillo 2´
4. Docena 1 1/3´
5. Quincena 1´
